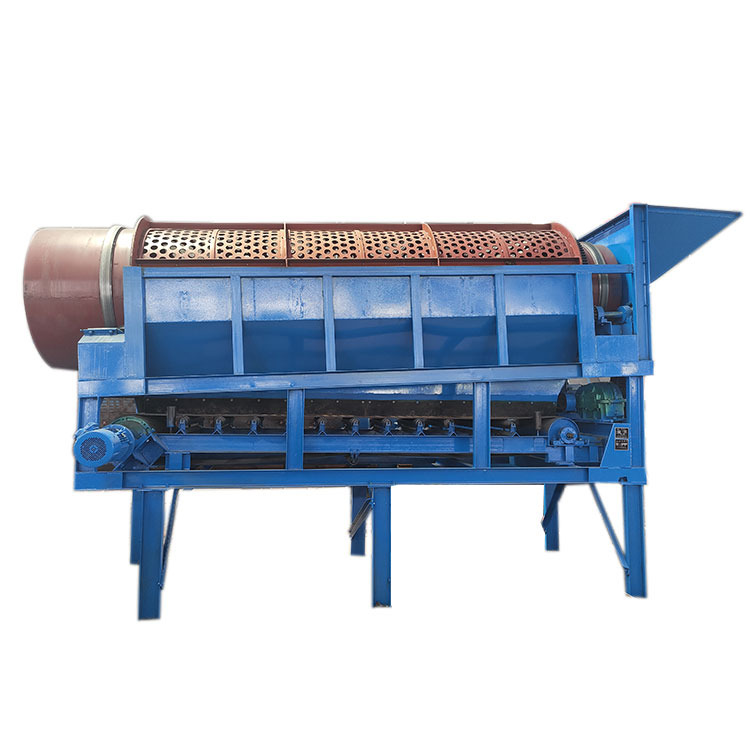

Heavy Duty Rotary Drum Compost Waste Mobile Waste Screening Machine Mining Trommel Screen

1 Piece
MOQ
Heavy Duty Rotary Drum Compost Waste Mobile Waste Screening Machine Mining Trommel Screen
Features Gallery Product Description Request A Quote
Features
Specifications
Applicable Industries: Manufacturing Plant, Home Use, Retail, Construction Works , Energy & Mining
Showroom Location: Italy, Viet Nam, Pakistan, Morocco, Chile, Colombia, Kazakhstan, Uzbekistan
Condition: New
Type: Ore, Mineral, Sand, Stone Sieving Or Washing
Production Capacity: 90%
Voltage: 380V
Dimension(L*W*H): 4146*1600*2680mm
Weight: 4200 KG
Warranty: 1 Year, 1 Year
Marketing Type: Ordinary Product
Machinery Test Report: Provided
Video Outgoing-inspection: Provided
Warranty Of Core Components: 1 Year
Core Components: Motor, Gear, Engine
Key Selling Points: High Rigidity
Product Name: Trommel Screen
Application: Ore, Mineral, Sand, Stone Sieving Or Washing
Capacity: 20t/h
Sieve Opening Size: 3-10mm
Dimension: 4146*1600*2680mm
Advantage: Mobile
Features2: Heavy Duty
Usage: Remove Dirty Soil
After-sales Service Provided: Video Technical Support
Basic Infomation
Payment & Shipping Terms
Packaging Details: packed in metal crate or as per your request
Supply Ability: 5000 Piece/Pieces per Month
Product Description
Product Overview

Description for trommel wash plant

Gold mobile trommel wash plant, also known as a rotary screen, a mechanical screening machine used to separate materials, mainly in the mineral and solid-waste processing industries. It consists of a perforated cylindrical drum that is normally elevated at an angle at the feed end.Physical size separation is achieved as the feed material spirals down the rotating drum, where the undersized material smaller than the screen apertures passes through the screen, while the oversized material exits at the other end of the drum.
Detailed Images
PRODUCT SPECIFICATIONS
Model
Capacity (t/h)
Power
Drum diameter
(mm)
Drum Length
(mm)
Sieve Opening Size
(mm)
 Dimension
  (mm)
Weight
(kg)
GT1015
50
4
1000
1500




≤3-10
3000*1400*2145
2300
GT1020
100
5.5
1000
2000
3460*1400*2145
2800
GT1225
160
7.5
1200
2500
4146*1600*2680
4200
GT1530
250
11
1500
3000
4460*1900*2820
5100
GT1545
350
15
1500
4500
5960*1900*3080
6000
GT1848
450
22
1800
4800
6500*2300*4000
7500
GT2055
600
30
2000
5500
7500*2500*4000
8600
FEATURES AT A GLANCE
Gold trommel wash plant 1. Anti-jam design. 2. Gear-drive mechanism. 3. Customized sieve size design. 4. Wear-resisting&repleacable sieve. 5. Double sieve ideal material classification. 6. Powerful motor with low power consumption. 7. High dealing capacity&fluent material washing.

SIMILAR PRODUCTS
Spiral Concentrator
Centrifugal Gold Concentrator
Jig Machine
Company Profile
Victor is a large mineral processing manufacturer for 15 years history, with covering an area of 48,000 square meters
and 20,000 square meters for workshop, with various large modernized machinery facilities, professional R&D team and installation team.
With 32% market share in China and the rest to overseas, already successfully exported to over 50 countries, such as USA, England, Australia, Brazil, Turkey, Italy, Russia, South Africa, Zimbabwe, Sudan, Ghana, Congo, Morocco, India,Indonesia, Malaysia, Philippines, North Korea, Mongolia, Vietnam, Thailand etc.
Our goal is to provide one-stop service for you and assist you to solve all problems from investment to his return in the field of mining, including the preliminary mineral analysis, mineral processing test, engineering design, equipment debugging and technical training etc..
We are expert especially at mining separating and lab mining plant, main products as below:
Gold trommel wash plant
Shaking table
Spiral chute separator
Centrifugal gold concentrator
Jig separator machines
Waste recycling machine
Grinding and mill crusher
Flotation cell machine
Magnetic separator
Laboratory mining plant
To View More
FAQ
Our Service:

1) Pre-sale service: Freely provide project designing, process designing, choosing suitable equipment for you.

2) Medium-sales service: Accompany you to complete the acceptance of the equipment, draft the construction scheme and detailed process, and complete process of export

3) After-sales service: Offer considerate technical guidance in installation, debugging and operators training. We are available at any time if you need.

Q1：Are you a manufacturer of mining equipment?
A1：YES, with more than 15 years production & sales experience

Q2: Could your company help design mineral flow chart?
A2: YES, we have about 20 people team of technician and can design a whole set of processing line.

Q3: Can you provide sample testing?
A3: YES, we have mineral testing laboratory and can do sample testing for you.

Q4: For efficient communication, what information should you provide before quotation?
1) what's your processed material? if it's rock ore, do you have mineral report?
2) what's your capacity(tons per hours)?
