Features Gallery Product Description Request A Quote

Features

Specifications

Features: Automatic

Applicable Industries: Food & Beverage Factory, Farms, Home Use

Showroom Location: Philippines

Video Outgoing-inspection: Provided

Machinery Test Report: Provided

Marketing Type: New Product 2020

Warranty Of Core Components: 1 Year

Core Components: PLC, Engine, Gearbox, Motor

Application: Waste Disposal Of Livestock And Poultry, Organic Fertilizer

Production Capacity: 5000L

Voltage: 380v

Weight: 9600 KG

Dimension(L*W*H): Customized

Condition: New

Warranty: 2 Years

Key Selling Points: Sustainable

Water Percent After Fermentation: About 20-30%

Usage: Organic Waste Recycle, Waste Treatment, Manure Recycling

Raw Material: Stainless Steel

Type: Organic Fertilizer Fermentation Machine

Total Power: 41.2W

After-sales Service Provided: Field Installation, Video Technical Support, Online Support

Function: Livestock Manure Fermentation

Basic Infomation

Payment & Shipping Terms

Packaging Details: Null Packing

Supply Ability: 10 Set/Sets per Month

Product Description

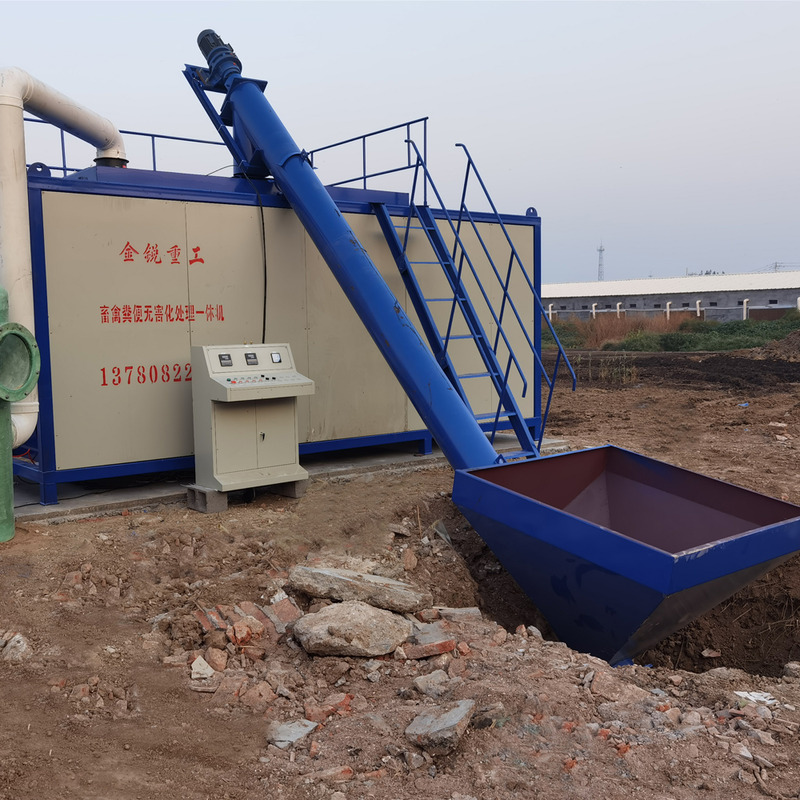

Livestocks excrements intelligent fermentation all-in-one machine manchine for organic fertilizer,It is aimed at the livestock manure in farm,residual sludge in sewage tretment plant to ferment with high temperature.It is aimed at organic matter in waste to biodegrade,It can achieve the integrated processing equipment of harmless, stabilization, energy saving and resource utilization. It is suitable for different kinds of farms such as pig farm,cow farm,chicken farm etc.After being processed by a fermentation all-in-one machine, the moisture of organic fertilizer was about 20%-30%,the organic fertilizer can packing directly.

Model	JR11FFQ-6	JR11FFQ-8	JR11FFQ-10	JR11FFQ-15
Capacity	6m³	8m³	10m³	15m³
Main Motor Power	11kw	15kw	15kw	2*11kw
Heating Power	20kw	20kw	30kw	30kw
Screw Conveyor	325mm*6m	425mm*6m	425mm*6m	425mm*6m
Screw Conveyor Motor Power	4kw	4kw	5.5kw	7.5kw
Discharging Machine	500mm*6m	500mm*6m	500mm*6m	500mm*6m
Discharging Machine Motor Power	1.1kw	1.1kw	1.1kw	1.5kw
Volume	5m1.8m2.1m	5.7m2m2.4m	6m2m2.4m	5.5m3.5m2.4m

Product Image

1.Box structure, internal stirring shaft rotating regularly, combined with high temperature fermentation technology, egg killing and sterilization. The feces can be deodorized after 2-3 hours in the equipment, and can be discharged after 6-8 hours of fermentation. All the indexes of organic fertilizer far exceeded the national standard.

2.Raw materials for production
Rural waste or livestock manure, auxiliary materials: cassava residue, mushroom residue, straw powder, peanut shell powder, corn cob, etc.Supplementary materials are added to enhance the permeability of materials and absorb water from rural waste or livestock manure. Regular mixing will increase the oxygen content of rural waste or livestock manure during fermentation. Without excipients, the fermentation process is slow, the air permeability is poor, the microorganism is greatly reduced, the treatment is slow, and the odor is easy to produce. Oxygen is needed in the equipment for aerobic fermentation, so that the microorganisms in the equipment can propagate and spread rapidly, and the organic fertilizer can be fermented.

3.Production process
Rural waste or livestock manure, auxiliary materials, microorganisms - adjust the carbon nitrogen ratio and water - Transport
feed - high temperature fermentation deodorization, insecticidal, dehumidification, decomposition - discharge.

Our Advantages

1. The equipment covers a small area, 500 square meters of work storage. It has the advantages of high mobility, low investment and high degree of automation (automatic control, detection and control of temperature, timing mixing, frequency conversion starting with material, etc.). 2. Electric heating leads to low energy consumption and short time. 3. Hard tooth surface high-performance reducer is used in the transmission mixing system, which is economical and durable. 4. The machine is equipped with automatic control regulator of oil temperature and material temperature, which is convenient and practical, and is the preferred equipment for harmless treatment and organic fertilizer production in farms. 5. Livestock manure can be rapidly converted into high-quality organic fertilizer after 8-10 hours of high-temperature fermentation, which has reached the national standard. 6. Suitable for field crops, fruits, trees, greenhouse vegetables, etc.

Packing & Delivery

Our Company

Shandong Jinrui Heavy Industry Machinery Co.,Ltd

Shandong jinrui hevay industry machinery CO.,LTD was established in 2001, which is located in Anqiu,Shandong, China. It is only 160 kilometers way from Qingdao port, which is biggest prot in north of China. We specialized in construction machinery,which is including concrete mixers(including JZ series counter- rotary with double cones, JS series compulsory mixer with double lying shafts, LSY cement spiral conveyor, cement silo, PLD concrete proportioning MC series and concrete plant ETC), and agricultural machinery such as manure fermentation processor, compost turner machine..The concrete mixers can be widely used in all kind of prefabrications, roads, bridges, ports and civil constructions and so on. The can mix stable soil concrete, plastic concrete, fluidity concrete, light aggregate concrete and mortars. Now all the constuction MC have passed state quality standard GB9142-2000, and our company have passed international quality management ISO9001-2000. We belive " customers foremost, credit first" and insist on providing satisfaction to the customers, we have created strong sales network all over the country and overseas covering east asia, southeast asia and africa. We are the manufacture. Near to Qingdao port. OEM acceptable. 16 years of production experience and 6 years of exporting experience. Competitive price with high quality JINRUIFU is China top 10 famous brand Main production:JZC series mixer, JS series mixer, concrete mixing plants and mobile concrete batching plant. We have created strong sales network all over the country and overseas covering East Asia,South Asia and Africa.

FAQ

1. Who are we?
We are based in Shandong, China, start from 2009,sell to Domestic Market(40.00%),South Asia(30.00%),Mid East(15.00%),Southeast Asia(11.00%),Eastern Asia(2.00%),North America(1.00%),Africa(1.00%). There are total about 201-300 people in our office.

2. How can we guarantee quality?
Always a pre-production sample before mass production;

Always final Inspection before shipment;

3.What can you buy from us?
Agricultural equipment such as livestock and poultry manure fermentation processors, solid-liquid separators, turning and throwing machines, and industrial equipment such as mixers.

4. Why should you buy from us not from other suppliers?
Jinrui company have more than 20 years of research and development in related products.Products to the optimal cost-effective and high quality sell well in the market at home and abroad.In China, many well-known companies in our cooperation for many years

5. What services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C;
Language Spoken:English,Chinese
